Press Metal Aluminium Rods Sdn. Bhd. (formerly known as Leader Universal Aluminium Sdn. Bhd.) - Solid Sector Aluminium Conductor

aluminium

solid sector aluminium conductor & extruded products

Our Solid Sector Aluminium Conductors are fabricated for low, medium and high voltage power cables used in underground applications. Solid Sector Aluminium Conductors are known for their low cost, simplicity and durability.

The conductors are produced via a continuous rotary extrusion process, in sections that range from 95mm² to 300mm² with specifications according to BS 3988: 1970.

A detailed specification of our Solid Sector Aluminium Conductor is as follows:

aluminium grade
EC 1350	Chemical composition
EC 1370	Chemical composition

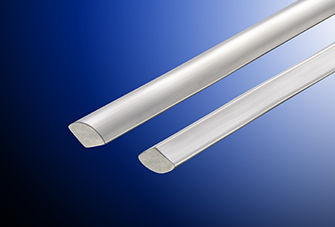

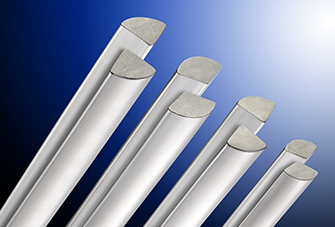

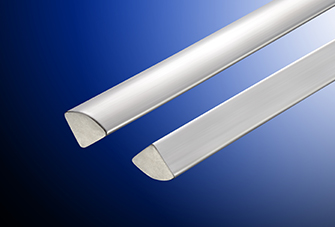

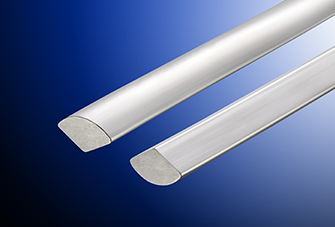

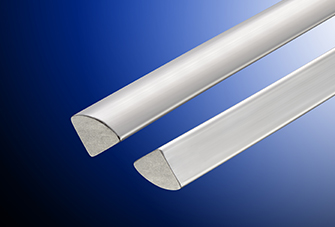

solid sector aluminium conductor
Cross Section Area	95mm², 120mm², 150mm², 185mm², 240mm², 300mm²
Core / Degree	2 cores - 180° 3 cores - 120° 4 cores - 90°
Product Specification	Download Here

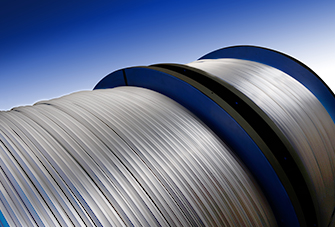

aluminium strip
Grade	1350 - Aluminium Strip
Temper Designation	H12
Size, W x H (mm)	1.5 x 12.5 3.0 x 20.0 3.0 x 25.0 6.0 x 25.0 3.0 x 30.0

aluminium strip

Grade

1350 - Aluminium Strip

Temper Designation

H12

Size, W x H (mm)

1.5 x 12.5

3.0 x 20.0

3.0 x 25.0

6.0 x 25.0

3.0 x 30.0

extruded aluminium rod
Tensile designation	H12
Rod Diameter Range	From 5.6mm to 24mm

mechanical and electrical properties
Designation	Tensile Strength	Conductivity at 20°C (Minimum)	Volume Resistivity at 20°C (Maximum)
Designation	MPa	%IACS	Ohm.mm²/m
1350-H12	83 - 117	61.5	0.028035

application and advantages
Type	Application	Advantages
Aluminium EC 1350	Widely used for electrical conductor as wire and solid shaped conductor	Conductivity In excess of twice that of copper by unit weight Light Weight Due to its proven light weight and excellent bend qualities make our EC Aluminium favorable for further customization Workability Permitting a wide range of processing from wire drawing to extrusion or rolling. Excellent bend quality. Aluminium possesses high elongation that eases the cold work process Corrosion ResistanceA tough, protective oxide coating quickly forms on freshly exposed aluminium and it does not thicken significantly from continued exposure to air Creep Like all metal under sustained stress, there is a gradual deformation over a term of years. With aluminium, design factors take it into account Compatibility with Insulation Does not adhere to or combine with usual insulating materials. No tin-coating required; clean stripping

application and advantages

Type

Application

Advantages

Aluminium EC 1350

Widely used for electrical conductor as wire and solid shaped conductor

Conductivity In excess of twice that of copper by unit weight

Light Weight Due to its proven light weight and excellent bend qualities make our EC Aluminium favorable for further customization

Workability Permitting a wide range of processing from wire drawing to extrusion or rolling. Excellent bend quality. Aluminium possesses high elongation that eases the cold work process

Corrosion ResistanceA tough, protective oxide coating quickly forms on freshly exposed aluminium and it does not thicken significantly from continued exposure to air

Creep Like all metal under sustained stress, there is a gradual deformation over a term of years. With aluminium, design factors take it into account

Compatibility with Insulation Does not adhere to or combine with usual insulating materials. No tin-coating required; clean stripping
